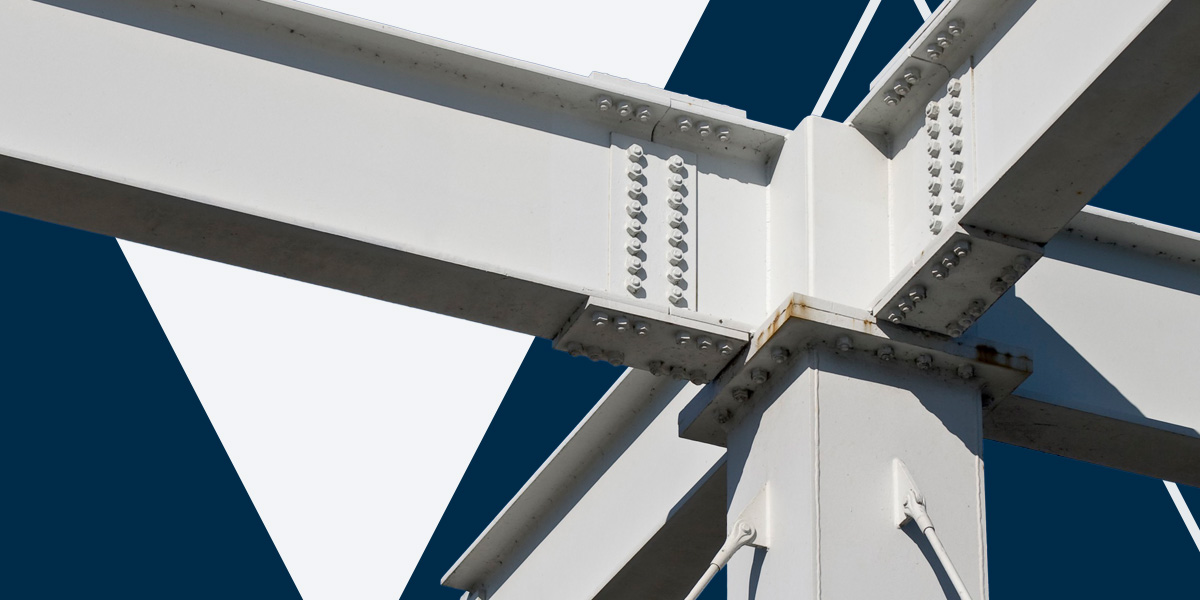

CUSTOM GUSSET PLATES
Gusset plates are integral to building strong and reliable structures, including bridges, steel buildings, and roof trusses. Typically made from steel, these plates are used in various applications, from construction to mechanical engineering, to create secure and durable frameworks.
At Mid-Atlantic Steel Fabrication, we deliver precise, durable custom steel gusset plates through superior craftsmanship and state-of-the-art technology.
Common Gusset Plate Materials
The choice of material for gusset plates significantly impacts their performance and suitability for specific applications. Several types of steel are ideal for making gusset plates:
- Cold-rolled steel: Cold-rolled steel is processed at lower temperatures, resulting in increased strength and hardness. This type of steel is well-suited for applications where high load-bearing capacity is essential. Its fine surface finish and precise dimensions make it a preferred choice in many structural projects. However, this material can be susceptible to corrosion in damp conditions.
- Stainless steel: Stainless steel is renowned for its resistance to rust and corrosion. Its high chromium content creates a protective barrier that preserves the integrity of the gusset plates even in harsh environmental conditions. It is ideal for outdoor constructions or areas exposed to moisture and chemical elements.
- Galvanized steel: Galvanized steel is coated with a zinc layer, significantly enhancing its corrosion resistance. Its robust nature and extended life span make it a popular option for gusset plates used in exterior applications, where exposure to the elements is a constant challenge.
- SS400 steel: SS400 is a low-carbon steel variant with high tensile strength and excellent hardness. Gusset plates made from SS400 are common in pre-engineered steel buildings and industrial projects that require reliable load-bearing capabilities. Its cost-effectiveness and performance make it a valuable option for many projects.
Design Considerations for Metal Gusset Plates
Effective gusset plate design goes beyond selecting the right material. Here are several factors you must consider for these plates to perform as intended under load:
- Material strength and thickness: The chosen material must withstand the loads and forces to which the gusset plate will be subjected. Equally important is the thickness of the gusset plate, which directly influences its load-bearing capacity. Heavy-load applications require thicker plates, while lighter connections can use thinner steel plates.
- Plate dimensions and shape: The connection type, bolt/weld placement, and load distribution requirements determine the size and shape of the gusset plate. Whether the plate is triangular, rectangular, or trapezoidal, its design must allow for optimal force distribution, and its size should match the structure’s scale. Triangular shapes are often used for truss connections, while rectangular plates are common in beam-to-column connections.
- Environmental considerations: External factors such as temperature fluctuations, humidity, and exposure to chemicals can affect the performance of gusset plates. Incorporating protective coatings or selecting corrosion-resistant materials can safeguard the plates against these environmental challenges.
- Connection type: Gusset plates can be welded or bolted depending on the project requirements. Welded connections provide a stronger bond and are common in permanent steel structures and industrial frameworks. Bolted gusset plate connections are easier to maintain and inspect and are ideal for steel buildings, bridges, and temporary structures.
Metal Gusset Plates Applications
Metal gusset plates are highly versatile and can be used across various industries. Some of the most common applications include:
- Bridges: For bridge designs, gusset plates reinforce the joints in truss systems, providing the strength to bear heavy traffic loads and environmental stress.
- Industrial machinery: Gusset plates enhance the rigidity and strength of machinery frames in the manufacturing sector, extending their operational life and performance.
- Pre-engineered steel buildings: Use gusset plates to join beams, columns, and braces in prefabricated steel structures, ensuring every element functions as a cohesive unit.
- Roof trusses: Gusset plates help distribute the roof’s weight evenly across the building’s framework, thus providing safe load transfer.
- Timber framing and construction: These plates are essential in post-to-beam connections. They reinforce heavy timber and prefabricated wood structures.
Why Choose Mid-Atlantic Steel Fabrication for Steel Gusset Plates?
We take pride in delivering custom-fabricated gusset plates that exceed industry standards. Here’s why we stand out:
- Custom solutions: We offer fully customized gusset plate designs that meet your size, shape, and material requirements.
- Advanced technology: We invest in the latest fabrication technology, allowing our products to meet the highest quality and performance standards.
- Unmatched expertise and experience: Our team of D1.1-certified fabricators has extensive experience in custom metal fabrication.
- Personalized service: At Mid-Atlantic Steel Fabrication, every client receives individualized attention from a dedicated project manager. This personalized approach means you have a single point of contact who understands your project’s unique needs and can offer expert advice throughout the fabrication process.
- Timely delivery: Our efficient production and delivery processes enable your project to stay on track, and we offer convenient delivery options at a small fee.
Contact Mid-Atlantic Steel Fabrication for Gusset Plates
Upgrade your structural projects with custom gusset plates from Mid-Atlantic Steel Fabrication. We are committed to precision, personalized service, and superior quality, offering steel gusset plates that form the backbone of robust, resilient structures. Call us today at 717-687-7313 to learn more about our services or contact us online to request a quote.
